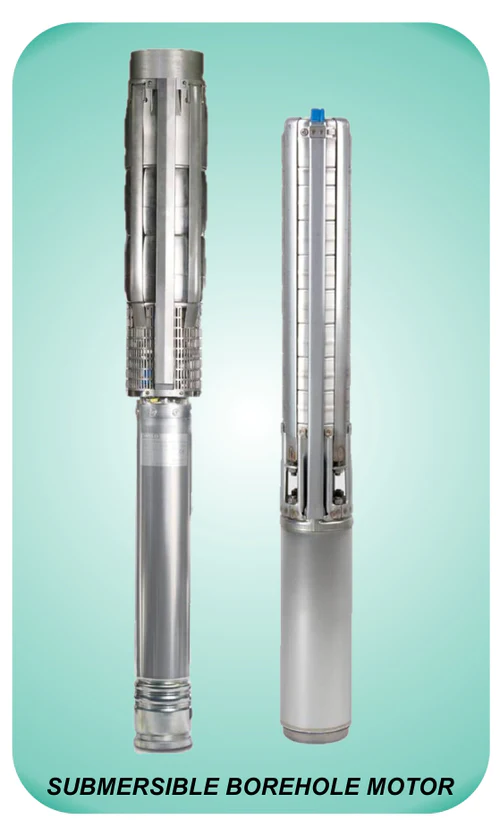

Stainless Steel Submersible Borehole Motor
For 4" & 6" Well Casing Diameter
High Quality Thrust Bearings
The trust bearing is of the kingsburrY
type lubricated by the internal fluid.
During operation a wedge of water is
drawn between the stainless steel pivot
shoes and carbon disc to carry the thrust
load generated by the pump.
Located inside and at the bottom of the motor,
the bearing is sealed away from sand and other contaminants.
Sand Resistant Slinger and Lip Seals
A stainless steel slinger and slinger guide
are also closely fit to help prevent sand entry.
Double rubber seals are installed to prevent
well water and contaminants from entering the motor.
High Reliable Carbon Bearing
Two water lubricated carbon bearings are
used as guide bearings. These have extremely
large surface area and result in extra alignment
support-less whipping and acts as a steady bushing.
Water-Filled Design
The motor lubrication is provided by the internal
cooling water consistings of a water, anti-freeze
and anti-rust mixture good to 30°C (-22°F). This
mixture is installed at the factory.
Two water plugs are located near of
the top of the motor and are used by
the installer to check the water level
or to the top off needed before installation.
Complete Corrosion and Water-Tight Protection
All main motor components are made of stainless steel:
including the can housing (water tight type motors
have baked epoxy coated steel housing), Shaft and bolts.
All other motor parts are coated with the baked epoxy coating.
