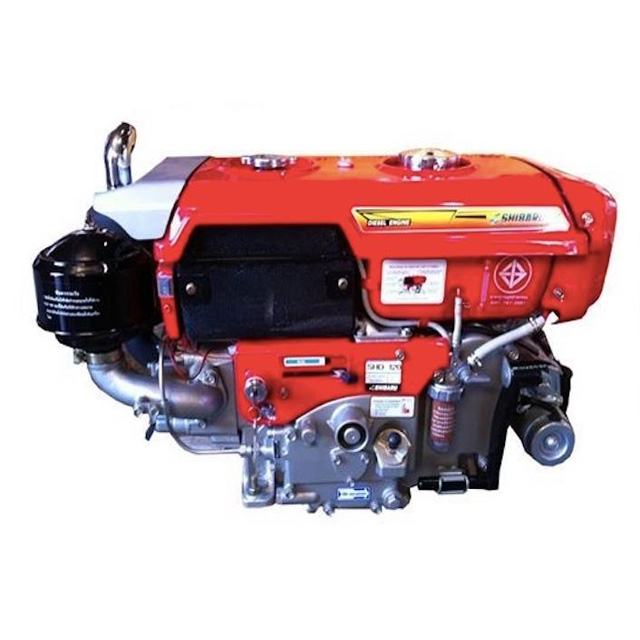

SHIBARU Water-Cooled Horizontal Type Diesel Engines - SHD110

Manufacturer: Shibaru

Water-Cooled Horizontal Type Diesel Engines

SKU: SHD110

Choose Variation *

₱52,300.00

Qty:

i h

Delivery date: 3-5 days

ENGINE DETAILS	SHD110	SHD120-ST	SHD160-ST	SHD180-ST
ENGINE TYPE	One Displacement 4 Stroke Radiator System Horizontal Engine
BORE X STROKE (mm)	92x90	94x90	105x115	110x115
DISPLACEMENT (cc)	598	624	996	1093
MAX. OUTPUT (ps(kw)/rpm)	11HP/2400 (8.09kw/2400)	12HP/2400 (8.83kw/2400)	16HP/2200 (11.8kw/2200)	18HP/2200 (13.2kw/2200)
RATED OUTPUT (ps(kw)/rpm)	9.5HP/2400 (6.99kw/2400)	10.5HP/2400 (7.72kw/2400)	13.5HP/2200 (9.9kw/2200)	15.5HP/2200 (91.4kw/2200)
COMBUSTION TYPE	Swirl Chamber	Direct Injection
COMPRESSION RATIO	18:01	17:01	17:01	17:01
FUEL CONSUMPTION	≤264	238.1	246.2
COOLING SYSTEM	Fan & Radiator Type
LUBRICATING SYSTEM	Rotary TYpe
STARTING SYSTEM	Hand Starting	Hand Starting / Motor Starting
ROTATION	Counter Clockwise facing Fly Wheel
FUEL	SAE-2D
LUBRICANT	SAE No. 40 API (CF,CC)
AIR COOLER TYPE	Wet Type
WATER CAPACITY (ltr.)	2.1		4.5
FUEL CAPACITY (ltr.)	10		13.8/9.7	9.7
LUBE CAPACITY (ltr.)	2.3
NET WEIGHT (kg.)	117	122	165	182
LAMPS	12V,45/45 Watt		12V, 35/35 Watt
