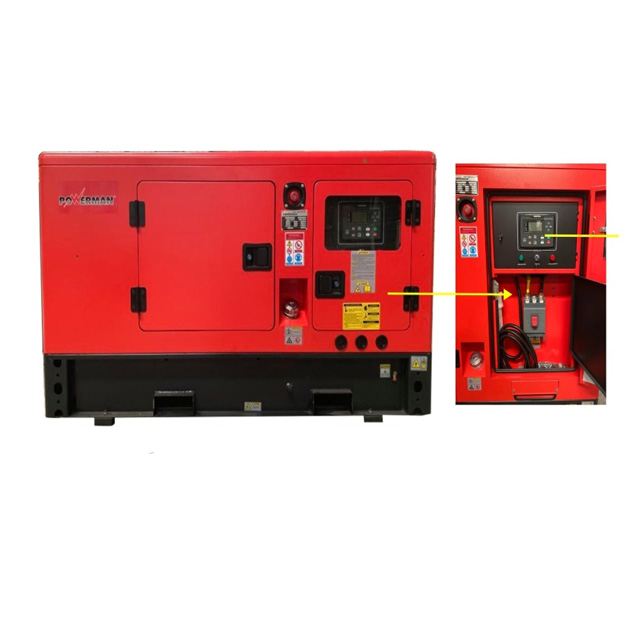

POWERMAN Diesel Silent Type Generator Set with ATS - PMC75000D-S1-ATS

Manufacturer: Powerman
A feed pump is a mechanism in diesel engine fuel systems that feeds fuel from the tank via the sedimenter and fuel filter before sending it to the injection pump . Although the injection pump pumps fuel, because its ability to take in fuel is limited, the feed pump compensates for this. Some diesel transfer pumps are rotary vane pumps, others are gear pumps. Electric diesel transfer pumps can be purchased in 12 volt, 24 volt, 230 volt and in ac and dc versions. A diesel water pump is a type of water pump that uses a diesel engine for power. It is used to transport water from one location to another for a variety of purposes including irrigation, dewatering, and firefighting. A diesel pump, which is usually referred to as a diesel fuel injection pump, is a somewhat complex mechanical piece of equipment. It is the mechanism that is used to pump fuel from the fuel tank into the carburetor, so it does just as the name suggests. Pumps are mechanical devices that use energy to move fluids from one point to another. The main application of pumps is to move fluids, such as gasses, oils, and water. An impeller or propeller is a part of a pump that helps move fluids through the device Pumps are mechanical devices that use energy to move fluids from one point to another. The main application of pumps is to move fluids, such as gasses, oils, and water. An impeller or propeller is a part of a pump that helps move fluids through the device. An impeller pump is a pump that uses an impeller.
SKU: PMC75000D-S1-ATS
*
₱1.00
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Genset Model / CodePMC75000D-S1-ATSPMC75000D-S3-ATS
Genset TypeSilent TypeSilent Type
Prime Power Output55kVa / 55kW68 kVA / 55 kW
Standby Power Output60kVa / 60 kW75 KVa / 60 kW
Consumption 100% (L/H)15.815.8
dB (A) @ 7m7070
Tank (L)200200
Engine Model4BTA3.9-G2483.9-G2
Number of Cylinders44
Cylinder ArrangementVertical In LineVertical In Line
Cycle4-Stroke4-Stroke
AspirationTurbo chargedTurbo charged
Bore x Stroke (mm x mm)102 x 120102 x 120
Displacement (Liter)3.93.9
Compression Ratio16:05:0116:05:01
Prime Power / Speed (kW/rpm)60/180060/1800
Stand by Power / Speed (kW/rpm)65/180065/1800
Speed GovernorElectricalElectrical
Cooling SystemWater Cooled
40 celcius Radiator
Water Cooled
40 celcius Radiator
Speed Stability (%)< 5%< 5%
Total lubrication system capacity (L)1111
Coolant capacity (without radiotor) (L)7.97.9
Fuel Consumption at 100% Load (g/kWh)220 (at 1800 rpm)
Starter MotorDC24VDC24V
AlternatorAC24VAC24V
Alternator ModelHK224E-1HK224E-3
Exciter TypeBrushless, Self-excitedBrushless, Self-excited
Power Factor10.8
Voltage Adjust Range<5 %
Voltage Regulation NL-FL< ±0.5 %
Insulation GradeH ClassH Class
Protection GradeIP 23IP 23
Overall Size L x W x H (m)2.28 x 1 x 1.32.28 x 1 x 1.3
Weight1120kg1080 kg





Genset Model / CodePMC125000D-S1-ATSPMC125000D-S3-ATS
Genset TypeSilent TypeSilent Type
Prime Power Output91kVa / 91kW114 kVA / 91 kW
Standby Power Output100kVa / 100 kW125 KVa / 100 kW
Consumption 100% (L/H)26.326.3
dB (A) @ 7m7070
Tank (L)300300
Engine Model6BT5.9-G16BT5.9-G1
Number of Cylinders66
Cylinder ArrangementVertical In LineVertical In Line
Cycle4-Stroke4-Stroke
AspirationTurbo chargedTurbo charged
Bore x Stroke (mm x mm)102 x 120102 x 120
Displacement (Liter)5.95.9
Compression Ratio17.5:117.5:1
Prime Power / Speed (kW/rpm)105 / 1800105 / 1800
Stand by Power / Speed (kW/rpm)115 / 1800115 / 1800
Speed GovernorMechanicalMechanical
Cooling SystemWater Cooled
40 celcius Radiator
Water Cooled
40 celcius Radiator
Speed Stability (%)< 5%< 5%
Total lubrication system capacity (L)16.416.4
Coolant capacity (without radiotor) (L)9.19.1
Fuel Consumption at 100% Load (g/kWh)221 (at 1800 rpm)
Starter MotorDC24VDC24V
AlternatorAC24VAC24V
Alternator ModelHK274C-1HK274C-3
Exciter TypeBrushless, Self-excitedBrushless, Self-excited
Power Factor10.8
Voltage Adjust Range<5 %
Voltage Regulation NL-FL< ±0.5 %
Insulation GradeH ClassH Class
Protection GradeIP 23IP 23
Overall Size L x W x H (m)2.73 x 1.06 x 1.482.73 x 1.06 x 1.48
Weight1620 kg1620 kg



Genset Model / CodePMC42000D-S1-ATS
Genset TypeSilent Type
Prime Power Output30kVa / 30 kW
Standby Power Output33kVa / 33 kW
Consumption 100% (L/H)9.5
dB (A) @ 7m71.5
Tank (L)42.3
Engine Model4B3.9-G1
Number of Cylinders4
Cylinder ArrangementIn Line
Cycle4-Stroke
AspirationTurbo
Bore x Stroke (mm x mm)102 x 120
Displacement (Liter)3.91
Compression Ratio16:05:01
Prime Power / Speed (kW/rpm)40/1800
Stand by Power / Speed (kW/rpm)44/1800
Speed Governorno
Cooling SystemWater Cooled
Speed Stability (%)< ± 0.25 %
Total lubrication system capacity (L)8
Coolant capacity (without radiotor) (L)8
Fuel Consumption at 100% Load (g/kWh)<215
Starter Motor24V
Alternator24V
Alternator ModelHKN184G
Exciter TypeBrushless, Self-excited
Power Factor1
Voltage Adjust Range±1.0 % with 4% engine governing
Voltage Regulation NL-FL<2% / <50
Insulation GradeH Class
Protection GradeIP 22
Overall Size L x W x H (m)2.23 x 1 x 1.3
Weight830 kg
