FEATURES
Improved operation.
Chrome plated steel body for anti-corrosion.

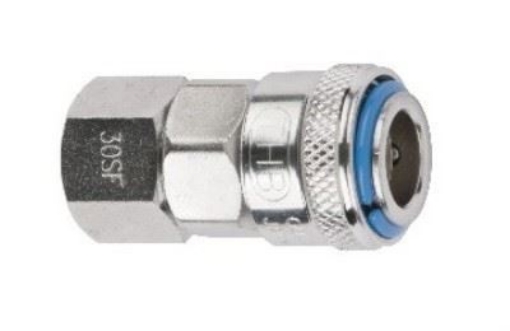

One-touch series couplers could be widely applied for male and female thread connections, hose connectors and manifolds.
SPECIFICATIONS
MATERIAL |
STEEL |
Thread |
PT |
Working Pressure |
15Bar(1.5MPa) |
Maximum Pressure |
20Bar(2MPa) |
Temperature Range |
-20℃ ~ +80℃ |
Size |
1/4" (20Type) |
3/8" (30Type) |
1/2" (40Type) |
