STAINLESS STEEL SUBMERSIBLE BOREHOLE MOTOR FOR 4" & 6" WELL CASING DIAMETER - MS4-15-1-1-T

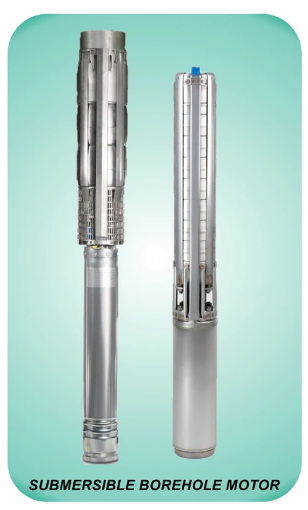

Stainless Steel Submersible Borehole

Motor For 4" & 6" Well Casing Diameter

High Quality Thrust Bearings The trust

bearing is of the kingsburrY type

lubricated by the internal fluid. During operation

a wedge of water is drawn between the

stainless steel pivot shoes and carbon disc to carry the thrust load generated by the pump. Located inside and at the bottom of the

motor, the bearing is sealed away from sand and other contaminants.

Sand Resistant Slinger and Lip Seals A

stainless steel slinger and slinger guide

are also closely fit to help prevent sand entry.

Double rubber seals are installed to prevent well water and contaminants from entering the motor. High Reliable Carbon Bearing Two water lubricated carbon

bearings are used as guide bearings. These have extremely large surface area and result in extra alignment support-less whipping and acts as a steady bushing. Water-Filled Design The motor lubrication is provided by the internal cooling water consistings of a water, anti-freeze and anti-rust mixture good to 30°C (-22°F). This mixture is installed at the factory. Two water plugs are located near of the top of the motor and are used by the installer to check the water level or to the top off needed before installation. Complete Corrosion and Water-Tight Protection All main motor components are made of stainless steel: including the can housing (water tight type motors have baked epoxy coated steel housing), Shaft and bolts. All other motor parts are coated with the baked epoxy coating.
