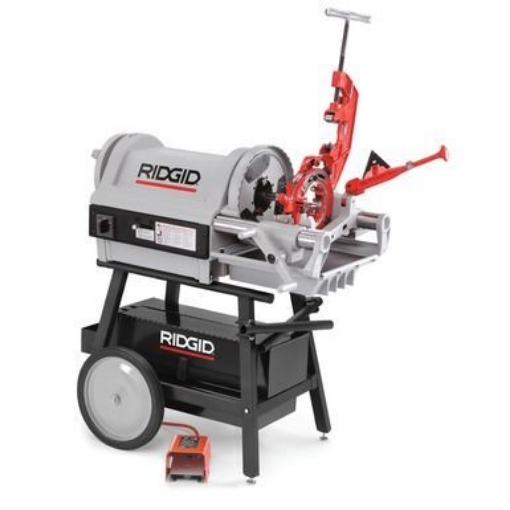

Ridgid Pipe & Bolt Threading Machine Model 1224

Manufacturer: Ridgid
Be the first to review this product
The Model 1224 threads a wide range of pipe including black, galvanized and plastic-coated pipe, together with stainless steel, IMC and heavy-wall conduit, as well as rod up to 30 Rockwell C.
SKU: Model 1224
Vendor: Screwking Hardware Corp.
Availability: In stock
Old price: ₱1,077,000.00
₱700,050.00
Your price: ₱700,050.00
i h
Please select the address you want to ship to
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Delivery date: 5-12 Days



FEATURES

  • An induction motor helps minimize noise.
  • A special capacitor-start / capacitor-run motor allows the 1224 to thread a full range of material where voltage drop is experienced.
  • 1/4"-2" Universal Die Head; 2 1/2"-4" receding die head allows cutting of tapered or straight NPT/NPSM or BSPT/BSPP threads.
  • Constant and proper lubrication of dies and workpiece with through-head oiling.

SPECIFICATIONS

Nominal Pipe Capacity 1/4"-2" (6mm-100mm) @ 36 RPM, 2-1/2"-4" (65mm-100mm) @ 12 RPM, 4"-6" (100mm-150mm) with 161 Geared Threader.
Bolt Capacity 1/4"-2" (6mm-50mm).
Motor Control Reverse/off/forward, heavy-duty rotary-type and integral foot switch.
Gear Box Two-speed gear box with a 3:1 ratio.
Chuck Hammer-type with replaceable rocker-action jaw inserts.
Rear Centering Device Cam action.
Oiling Pump Self-priming, gerotor-type, automatic-reversing, constant-flow.
Oiling Through die head



CATALOG NUMBERMODEL NO.DESCRIPTIONDIE HEADRPMVOLTAGE (V)FREQUENCY (HZ)PHASEMOTOR TYPEAMP DRAW (A)POWERWEIGHT
LB.KG
26097 1224  1/2" - 4" NPT Hammer Chuck Machine  711/714  36/12  230  60  1  Induction  8  1 1/2 HP  509.0  231.0
