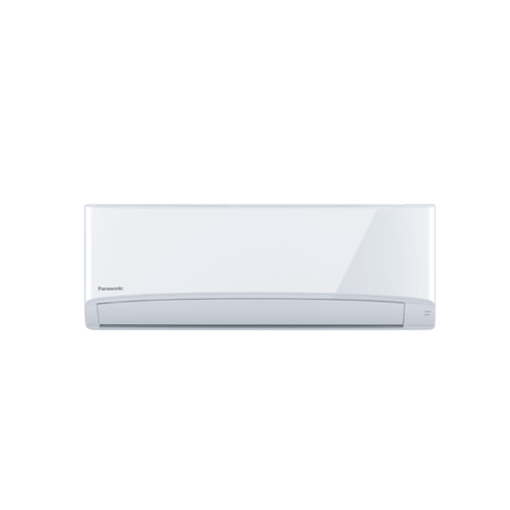

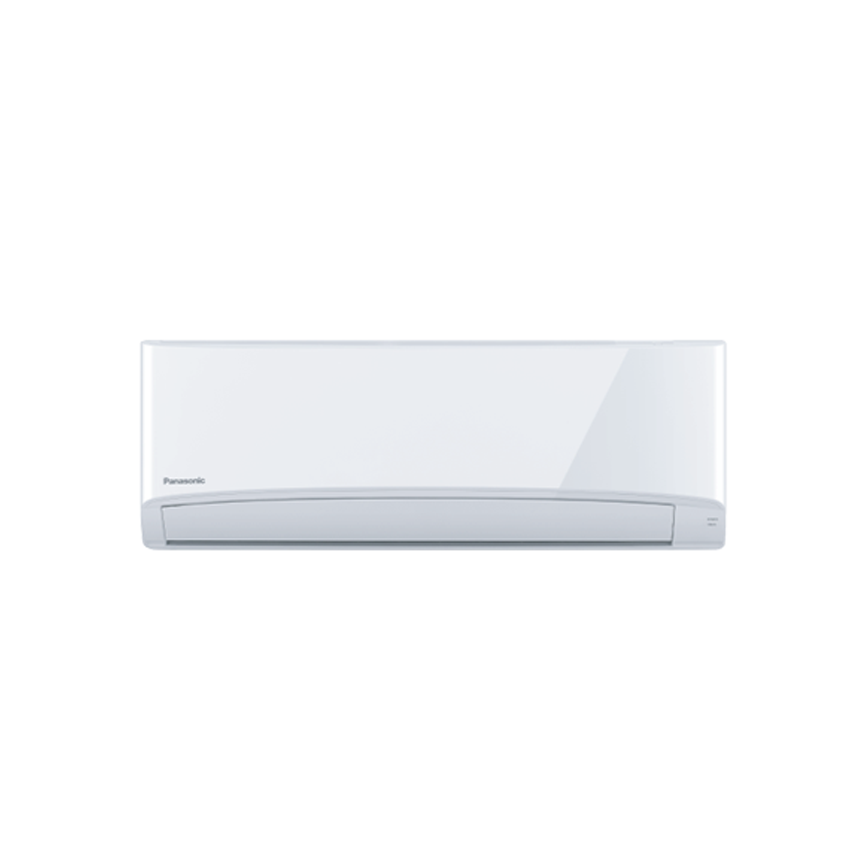

| MODEL | [60hZ] | CS-PN18UKQ 2.0HP [CU-PN18UKQ] |
|---|
| Cooling Capacity | (min-max) | Kj/h | 18,180 |
|---|
| (min-max) | kW | 5.05 |
|---|
| EER | (min-max) | kj/hW | 10.5 |
|---|
| Electrical Data | Voltage | V | 230 |
|---|
| Running Current | A | 7.6 |
|---|
| Power Input | W | 1,730 |
|---|
| Moisture Removal | L/h | 2.8 |
|---|
| (Pt/h) | 5.9 |
|---|
| Air Circulation | m³/min. | 36.9 (1,300) |
|---|
| [Indoor/Hi] | ft³/min | 18.4 (650) |
|---|
| Noice Level | Indoor (Hi/Lo) | (dB-A) | 43/39 |
|---|
| Outside (Hi) | (dB-A) | 55 |
|---|
| Dimensions | Height | mm | 302 (619) |
|---|
| inch | 11-29/32 (24-3/8) |
|---|
| Width | mm | 1,102 (824) |
|---|
| inch | 43-13/32 (32-15/32) |
|---|
| Depth | mm | 244 (299) |
|---|
| inch | 9-5/8 (11-25/32) |
|---|
| Net Weight | kg | 12 (26) |
|---|
| Lb | 35 (77) |
|---|
| Refrigerant | Liquid Side | mm | ø 6.35 |
|---|
| Pipe Diameter | inch | 1/4 |
|---|
| Gas Side | mm | ø 12.70 |
|---|
| inch | 1/2 |
|---|
| Pipe Extension | Chargeless Pipe Length | m | 7.5 |
|---|
| Maximum Pipe Length | m | 20 |
|---|
| Maximum Elevation Length | m | 15 |
|---|
| Additional Refrigerant Gas* | g/m | 10 |
|---|
| Power Supply | Outdoor |
|---|
