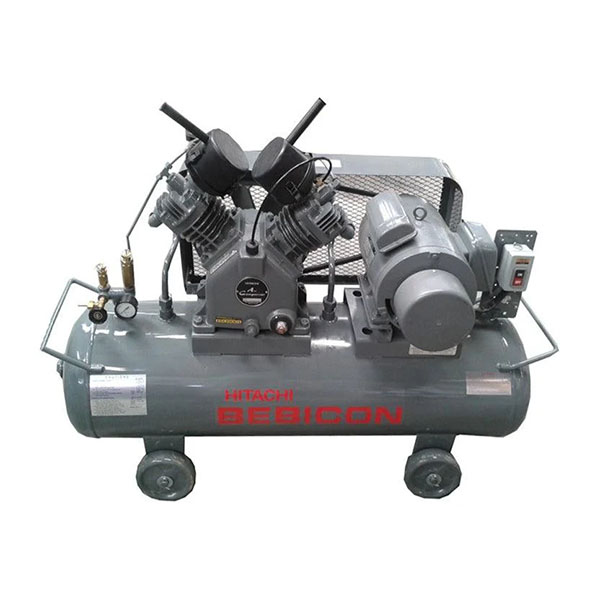

Hitachi Air Compressor

Manufacturer: Hitachi

Hitachi Air Compressor (Bebicon)

SKU: 0.75U-9.5VS6A , 1.5U-9.5V6A , 2.2U-9.5VS6A , 5.5U-9.5V6A , 3.7P-14V6A , 5.5P-14V6A

₱5.00

Qty:

i h

BEBICON Air Compressors
Heavy Duty

Model	0.75U-9.5VS6A	0.75U-9.5V6A	1.5U-9.5VS6A	1.5U-9.5V6A
Tank Type	Horizontal
Operating System	Automatic unloader type
Motor Output (kw)	0.75	0.75	1.5	1.5
Maximum Pressure MPa	0.93
Cylinder Diameter (mm) x Stroke (mm) x Number of Cylinders	50 x 65 x 1		72 x 65 x 1
Compressor speed (min-1)	990		970
Displacement (l/min)	126		257
Capacity at Maximum Pressure	80		165
Air Tank Capacity (L)	60		80
Power Source (PH)	1	3	1	3
Standard Accessories	Pressure Gauge, Safety valve, Hose joint, V-Belt, Belt Cover, Silencer stop valve, Air outlet 1/4BX1 for 0.75 &1.5kW
Standard Dimensions (WxLxH)	931 x 376 x 816		1,173x380x867
Weight	79	72	102	90
Noise Level dB(A)	70		72

Model	2.2U-9.5VS6A	2.2U-9.5V6A	3.7U-9.5V6A	5.5U-9.5V6A	7.5U-9.5V6A
Tank Type	Horizontal
Operating System	Automatic unloader type
Motor Output (kw)	2.2		3.7	5.5	7.5
Maximum Pressure MPa	0.93
Cylinder Diameter (mm) x Stroke (mm) x Number of Cylinders	72 x 65 x 2		L) 90x85x1 H) 50x85x1	L) 105 x 85 x 1 H) 60 x 85 x 1	L) 905 x 85 x 2 H) 72 x 85 x 1
Compressor speed (min-1)	730		1000	1080	950
Displacement (l/min)	386		541	795	1027
Capacity at Maximum Pressure	265		440	630	840
Air Tank Capacity (L)	90		125	150	235
Power Source (PH)	1	3	3	3	3
Standard Accessories	Pressure Gauge, Safety valve, Hose joint, V-Belt, Belt Cover, Silencer stop valve, Air outlet 1/4BX2 for 2.2 KW , 1/4BX1 & 3/8BX1 for 3.7 & 5.5 kW, 1/4BX1 & 3/4BX1 for 7.5 & 11kW 1BX1 for 15 kw
Standard Dimensions (WxLxH)	1283 x 403 x 808		1345 x 428 x 948	1470 x 482 x 979	1643 x 547 x 1103
Weight	134	117	158	203	280
Noise Level dB(A)	72		74	76	79

Model	3.7P-14V6A	5.5P-14V6A	7.5P-14V6A
Tank Type	Vertical	Vertical	Vertical
Operating System	Automatic unloader type
Motor Output (kw)	3.7	5.5	7.5
Maximum Pressure MPa	1.23 / 1.37	1.23 / 1.37	1.23 / 1.37
Cylinder Diameter (mm) x Stroke (mm) x Number of Cylinders	L) 90x85x1 H) 50 x 85 x 1	L) 105 x 85 x 1 H) 60 x 85 x1	L) 900 x 85 x 2 H) 72 x 85 x 1
Compressor speed (min-1)	900	970	900
Displacement (l/min)	487	714	973
Capacity at Maximum Pressure	400	550	760
Air Tank Capacity (L)	300	300	300
Power Source (PH)	3	3	3
Standard Accessories	Pressure Gauge, Safety valve, Hose joint, V-Belt, Belt Cover, Silencer stop valve 3/8 BX1 for 3.7 & 5.5 kW 3/4BX1 for 7.5kW
Standard Dimensions (WxLxH)	957 x 590 x 1732	1025 x 611 x 1734	1102 x 634 x 1814
Weight	260	317	363
Noise Level dB(A)	75	76	80
