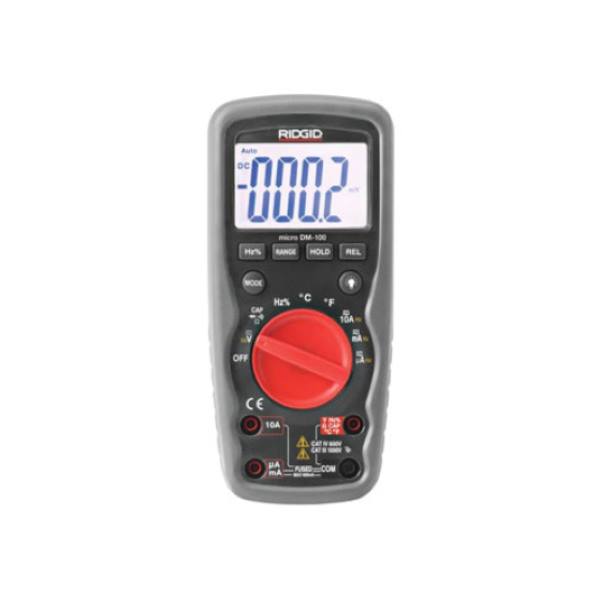

DIGITAL MULTIMETER MICRO DM-100-37423

Manufacturer: Ridgid
Be the first to review this product
DIGITAL MULTIMETER MICRO DM-100-37423
SKU: 37423
Vendor: Screwking Hardware Corp.
₱21,600.00
i h
Please select the address you want to ship to
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Features

  • IP 67 waterproof & drop-proof
  • 11 functions in one
  • True RMS / AutoRanging


Specifications

  • Power Source: 9V Battery (included)
  • Display: 4000 Count Backlit LCD
  • Overload Protection: CAT III &IV 1000V/600V
  • Fuses: 2x, 0.5A & 10A- 1000V
  • Insulation: Class II, Double Molded
  • IP Rating: IP-67 Water-Resistant (1m)
  • Polarity Indication: Yes, Automatic
  • Auto Power-Off: Yes, After 15 Minutes
  • AutoRanging: Yes
  • Manual Ranging: Yes (single button)
  • True RMS: Yes
  • Voltage AC/DC: 400.0mV – 1000V
  • Current AC/DC: 400.0μA – 10A
  • Resistance: 400.0Ω – 40.00MΩ
  • Capacitance: 4.000nF – 200.0 μF
  • Frequency: 9.999Hz – 9.999MHz
  • Duty Cycle: 0,1% - 99,9%
  • Diode Check: 1.5V
  • Continuity Test: 150Ω
  • Temperature: -20°C – 760°C
