FEATURES:
- Variable speed by thumbwheel for easier starting of holes
- 3 speed oil bath gearbox with mechanical clutch
- Electronic overload and thermal protection
- Side handle in-line with spindle for best control
- Anti-seize ring for easy bit removal
SPECIFICATIONS:

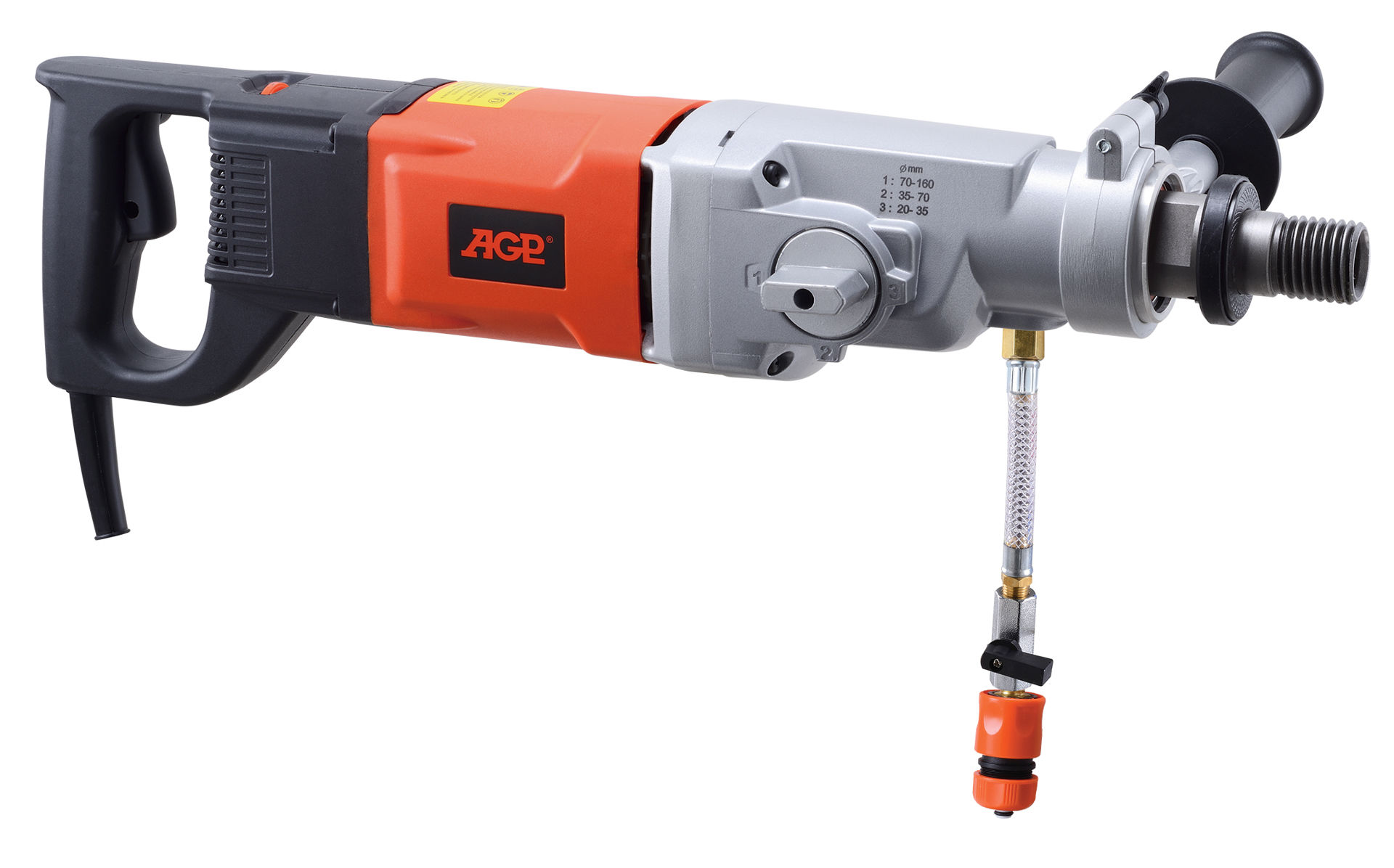

Model | DM160 |
---|
Power Input | 110-120V:1700W, 220-240V:2000W |
---|
Voltage | 110-120V~ 50-60Hz, 220-240V~ 50-60Hz |
---|
No Load Min-1 | Speed 1 | 400-850 |
---|
| Speed 2 | 750-1640 |
---|
| Speed 3 | 1550-3450 |
---|
Capacity | Hand-Held | 82mm(3") |
---|
| Rig-Mounted | 200mm (8") |
---|
Spindle Thread | 1-1/4” UNC male & 1/2” BSP female |
---|
Neck Diameter | 60mm |
---|
Soft Start & Overload Protection | With |
---|
Protection Class | Class I with PRCD / GFCI |
---|
Dimensions(LxWxH) | 552mm x 110mm x 150mm |
---|
Net Weight | 6.0 kg ( 13.2 Lbs ) |
---|
Standard Accessories: Water Supply Kit, Side Handle, M32 combination Wrench, PRCD/GFCI Interrupter
